1#
t
T
发表于 2010-10-21 16:50
|只看楼主

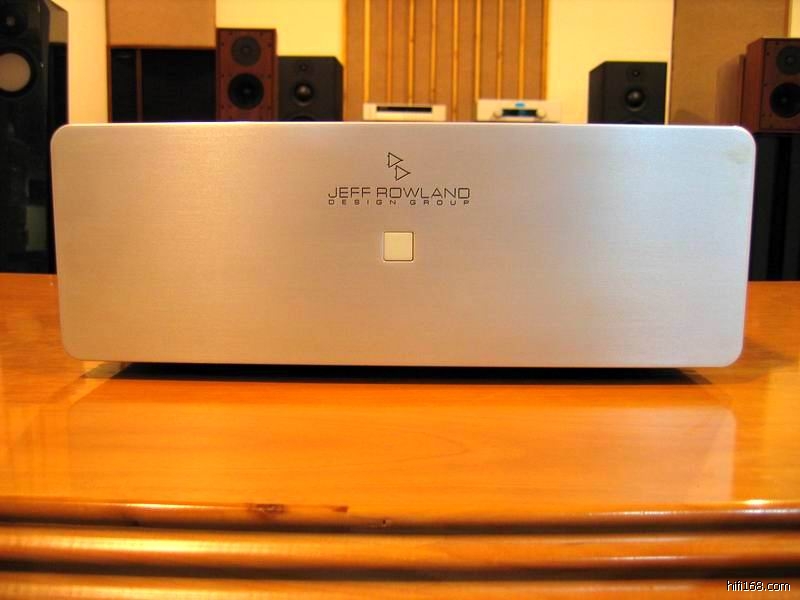

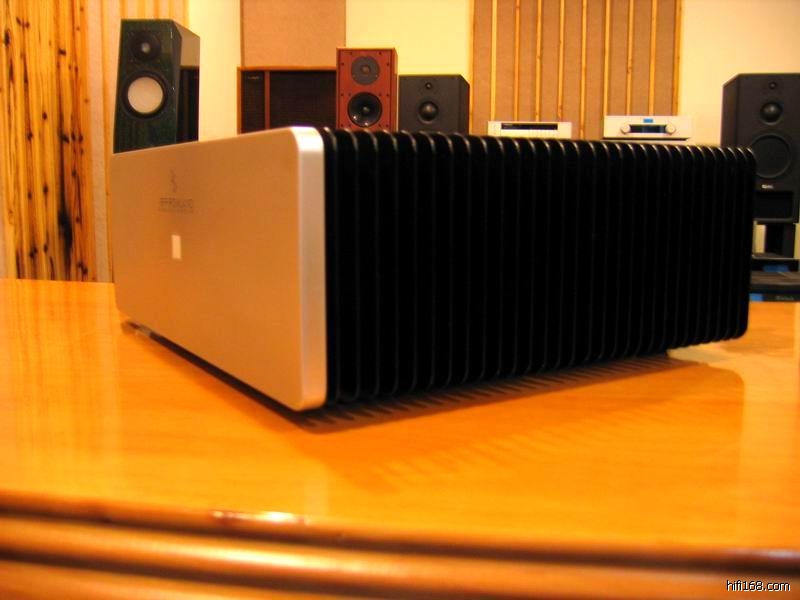

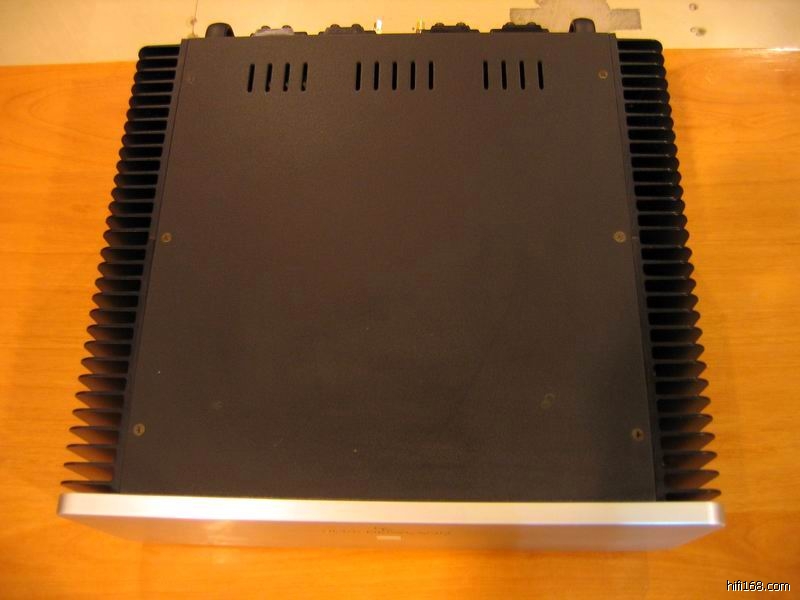

品相良好，有意请联系：冯生13435442269 QQ：514647484 Model 1 SpecsSpecs refer to the latest iteration of the product. Output power | 60 watts RMS continuous, 8 ohms
120 watts RMS continuous, 4 ohms
215 watts RMS continuous, 2 ohms | Power Bandwidth | 0.3 Hz to 300 kHz, -3 dB | Slew Rate | 70 volts per microsecond | THD and Noise | Less than .025%, 1 kHz, 8 ohms, 20 watts
Less than .035%, 1 kHz, 8 ohms, 60 watts | Damping Factor | Greater than 200, 20 Hz to 20 kHz, 8 ohms
Greater than 85 100 kHz, 8 ohms | Output Current | 22 amps peak, continuous
55 amps peak, 0.1 ohm, 20 msec, 1 kHz | Overall Gain | Selectable: 20, 26, 29.5, 32 dB | Sensitivity | 136 mV, 1 watt, 8 ohms | Input Impedance | Selectable: 100k, 20k, 600 ohms | Common Mode Rejection Ratio | Greater than 90 dB | Bridged Mono Output Power | 240 watts RMS continuous, 8 ohms
360 watts RMS continuous, 4 ohms
500 watts RMS continuous, 2 ohms | Power Requirements | 100V-240V |
-
-
(, 下载次数:0)
jpg(2010/10/21 16:50:12 上传)
-
-
(, 下载次数:0)
jpg(2010/10/21 16:50:12 上传)
-
-
(, 下载次数:0)
jpg(2010/10/21 16:50:12 上传)
-
-
(, 下载次数:0)
jpg(2010/10/21 16:50:12 上传)
|
