Korg MR-1000便携式专业级DSD录放机 发烧级媒体录放机! [复制链接]

1#
2005年我在圣彼得堡参加一个音乐节用了一款不错的携带式录音机,当时用的是Korg MR-1那款,录音效果很好(是否好这时完全取决于所用的麦克风和,麦克风摆放位置以及录音现场的自然音响环境)。不但录音效果好,而且重放一样好。现在大家听Ipod等媒体播放器或者在电脑上听网上下载(即便下载到很高格式的录音母带),你的播放器或电脑声卡上的AD转换芯片首先就将再好录音的音源破坏和降级了,出来的自然是严重变质的声音。Korg DSD录音机是设计来作为专业录音用的,即便他被专业录音师认为不够专业,但是对于我们这些聆听者而言就是一个不错的发烧级媒体录放机,出门可以作为随身听,听从任何音源上转录来的高品质声音,回家接在解码器或者就用本机的模拟输出,都可以播放出上等的声音,不信就试试!正如,在电脑上看电子版的小说永远代替不了手捧一本印刷和封面设计精美的纸质小说。再好的媒体播放器也许永远代替不了听LP和听CD的感觉。今后幸存的CD可能是录音和制作精美的,比方说SACD/XRCD混合激光唱片。历史录音本身就无法讲究录音效果,还有廉价唱片和盗版唱片可能就会被网上在线听或者下载到媒体播放器上播放。这是我个人的猜想。

Korg-MR1000的介绍


The future is now. Wow!


This super-portable professional mobile recorder boasts extreme high fidelity 1-bit recording technology, delivering a mind-boggling 1-bit/5.6 MHz that literally doubles industry DSD recording quality standards. It's sure to become the gold standard of professionals who want to record and archive their final mixes in the studio, while its compact size makes it perfect for location recording, podcasting, live music and just about every other application this new century will demand.


1-bit recording is the newest wonder of the audio world and has been adopted for use in the SACD recording format. Its uncompromising fidelity, low noise floor, extended dynamic range, lifelike imaging and analog quality depth have been praised by top experts. Another benefit of the 1-bit format is that it can be converted to any other bit depth and sample rate without error or degradation. After recording and editing all your tracks in the DAW/hardware system of your choice, you can mix directly, or via an analog summing mixer, to the MR-1000. This gives you the superb fidelity of high-rate 1-bit technology, which preserves all the transients, nuances, and “air” from the original recording. It also comes bundled with powerful AudioGate software that lets you convert your 1-bit recordings and mixes into all of today's audio formats without degradation. Best of all, by archiving your data/mix in this new double-speed 1-bit format you're ready for the future. Even as playback systems and standards continue to evolve, you'll be a step or two ahead of them. It supports multiple recording formats including DSDIFF, DSF and WSD 1-Bit formats as well as multi-bit PCM format (BWF) with resolutions up to 24-bit/192 kHz. Its 40GB internal hard drive gives you a up to six hours of recording at the highest audio quality (1-bit 5.6448 MHz stereo), or approximately sixty hours at CD quality (16-bit 44.1 kHz). It sports combination XLR/ 1/4" input connectors with top quality microphone preamps, phantom power and built-in limiting, and offers both XLR and RCA outputs for maximum flexibility. Main Features:
• High fidelity 1-Bit recording technology
• 40GB internal hard drive
• Supports multiple recording formats
• Up to 6 hours of recording at highest audio quality
• Approximately 60 hours of recording at CD quality
• Comes with powerful AudioGate software
• Combination XLR/1/4" input connectors
• High quality mic preamps, phantom power and built-in limiting
• High-Speed USB 2.0 connectivity for lighting quick file transfer
• XLR and RCA outputs Specifications: Recorder Section:
• Number of Tracks: 2 tracks, 2-track recording/playback simultaneously
• Recording Formats: 1-bit audio formats - DSDIFF, DSF, WSD: 2.8224 MHz @ 1-bit, 5.6448 MHz @ 1-bit
• PCM audio formats - WAV, BWF: 44.1 kHz @ 16/24-bit, 48 kHz @ 16/24-bit, 88.2 kHz @ 24-bit, 96 kHz @ 24-bit, 176.4 kHz @ 24-bit, 192 kHz @ 24-bit
• MP3 format - playback only 44.1kHz/32kbps-320kbps (MP3 format support will be added in an upcoming free update. This system updater is expected be available in the middle of 2007 via KORG distributor's websites)
• Internal Hard Disk Drive: 40 GB
• Recording Time: Max Approx. 31 Hours (44.1 kHz @ 16-bit, 2-track)
• Number of Projects: Recognizes a maximum of 200 for each format, max 1,000 projects
• Mark Points: 100 points per a song (no mark name)
• USB Functions: USB 2.0 supported, ability to use as FAT32 external USB drive
• Song Editing: Rename, Delete, Protect General:
• Display: 160 x 104 dots LCD with backlight
• Dimensions: 192(W) x 170(D) x 56(H) mm/7.56"(W) x 6.69"(D) x 2.20"(H)
• Weight: 1.0 kg/2.20 lbs. (without batteries)
• Power Supply: AC Adapter, or eight AA batteries (sold separately), Oxyride batteries, or charged nickel metal-hydride batteries
• Current Consumption: 7 W
• Accessories: AC Adapter; Carrying Bag; CD-ROM ("AudioGate" Audio File Conversion Software) Principal Specifications:
• Frequency Response: 10Hz ~ 20kHz ±1dB @ Fs44.1kHz, 10Hz ~ 40kHz ±1dB @ Fs88.2kHz/96kHz/176.4kHz/192kHz, 10Hz ~ 100kHz (1 bit)
• S/N: 96 dB (typical) @ IHF-A INPUT-OUTPUT
• THD+N: 0.008% (typical) 20 kHz-LP
• A/D Conversion: 2.8224 MHz/5.6448 MHz (1-bit), 24-bit (PCM)
• D/A Conversion: 2.8224 MHz/5.6448 MHz (1-bit), 24-bit (PCM) Input L-R:
• Connectors: XLR-3-31 type / 1/4" TRS phone jack (balanced); Phantom power: 48V/10mA per channel, on/off switch
• Input Impedance: 4.5 k Ohm (XLR-3-31), 68 k Ohm (TRS phone, Line)
• Nominal Level: - 60 dBu - - 28 dBu, XLR (balanced), - 26 dBu - + 4 dBu, 1/4" TRS phone (balanced), - 26 dBV - - 6 dBV, 1/4" TRS phone (Unbalanced)
• Maximum: 16 dBu, XLR (balanced), + 16 dBu, 1/4" TRS phone (balanced), + 6 dBV, 1/4" TRS phone (Unbalanced) Output L-R (Unbalanced/Balanced):
• Connectors: RCA (Unbalanced)/XLR-3-32 type (balanced)
• Nominal Level: 6 dBV/+ 4 dBu
• Maximum Level: + 6 dBV/+ 16 dBu
• Load Impedance: 47 k Ohm or greater/600 k Ohm or greater Phones:
• Connector: 1/4" stereo phone jack
• Load Impedance: 16 k Ohm or greater
• Maximum Level: 50 mW + 50 mW @ 32 k Ohm USB:
• Connector: Type B
• Format: USB 2.0 High-Speed device, USB mass storage class
• Supported OS: Windows Me, 2000 or later, Mac OS 9.0.4 or later Included Items:
• AC adaptor (also operates as charger), carry bag, CD-ROM (“AudioGate” audio file conversion application) AudioGate System Requirement:
• Supported OS: Windows XP Home Edition/Professional Edition (Service Pack 1 or later), Mac OS X 10.3.9 or later
• CPU: [Windows] Intel Pentium III/1 GHz or faster [Macintosh] Apple G4/800 MHz or faster (Intel-based Mac supported)
• Memory: 256 MB or larger (512 MB or larger recommended) Read a review on this product at www.podcastgearguy.com.

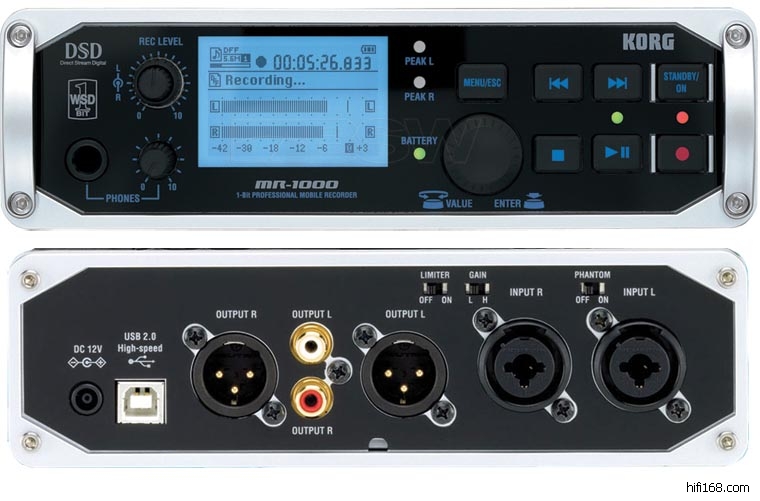

Korg rear interface.jpg (, 下载次数:140)

jpg(2009/1/30 11:09:08 上传)

Korg rear interface.jpg

分享 转发
www.channelclassics.com (试听300多款录音片段)
http://shop34588457.taobao.com/ (网上购买)
TOP
2#

谢LZ! 我正在准备进这累的东东。
Der Zeit Ihre Kunst , Der Kunst Ihre Freiheit.
The art for the time , the freedom for the art.

TOP
3#

LZ是否能介绍一下价格?包括 KORG MR-1 1-BIT MOBILE RECORDER
谢谢!
Der Zeit Ihre Kunst , Der Kunst Ihre Freiheit.
The art for the time , the freedom for the art.

TOP
4#

原帖由 Heifetz1 于 2009-1-30 16:00:00 发表
LZ是否能介绍一下价格?包括 KORG MR-1 1-BIT MOBILE RECORDER
谢谢!
在网上购买是1119美元。你最好到该公司的网站上看看他们在世界各地的经销商有哪些,直接与经销商联系一下 比较比较价格,看谁的便宜。我相信你用上了,一定会喜欢得六亲不认,还需要给它娶个媳妇---一支全指向麦克风umni mic(最好是电子管的)
www.channelclassics.com (试听300多款录音片段)
http://shop34588457.taobao.com/ (网上购买)
