楼主:北京飞韵美

美国PBN AUDIO 音箱介绍 [复制链接]

查看: 19429|回复: 33
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
11#
t T
发表于 2016-02-03 16:43 |只看楼主

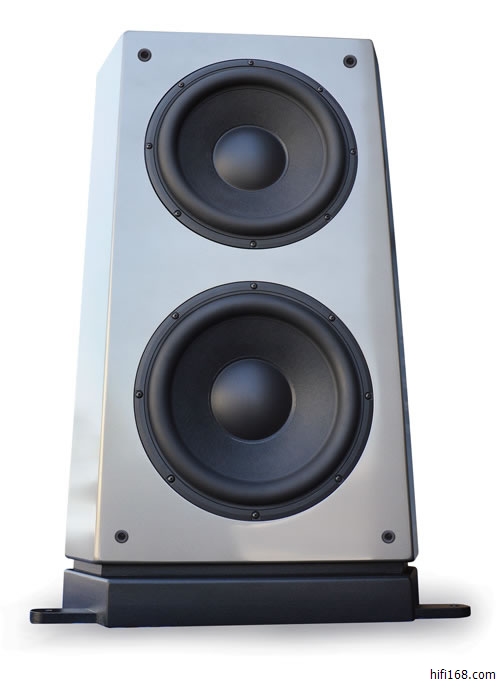

十：TECHNICAL FEATURES
  • Dual extremely long-throw 12” woofers with fiber-reinforced pulp cones
  • Accurately designed and engineered Ranger Board™ cabinet
  • Choice of custom finishes in real wood veneer and/or piano lacquer finish

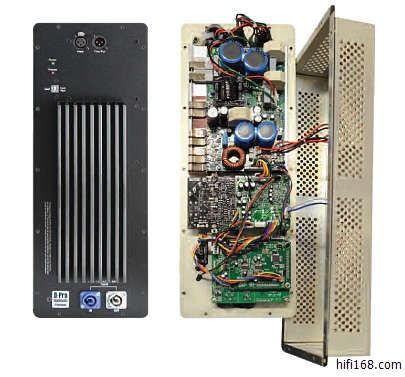

  • Built-in 2 x 500W Ice-Power internal amplifier
    • Dimensions (WxDxH): 19" x 21" x 33"
    • Weight: 140 lbs
    • Finish: Custom order (Finishes Charts)


jpg(2016/2/3 16:42:54 上传)



jpg(2016/2/3 16:42:54 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
12#
t T
发表于 2016-02-03 16:45 |只看楼主

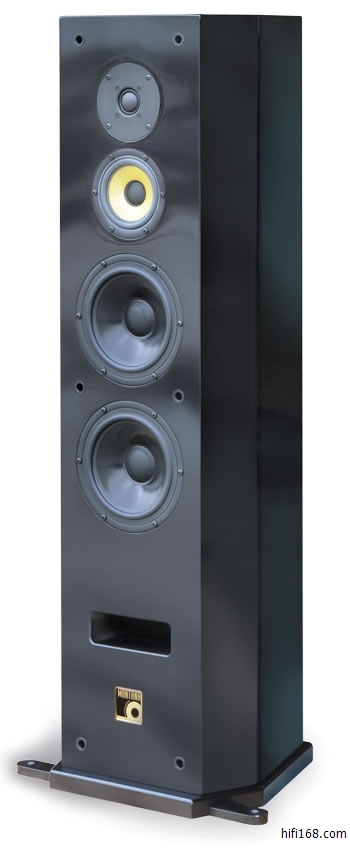

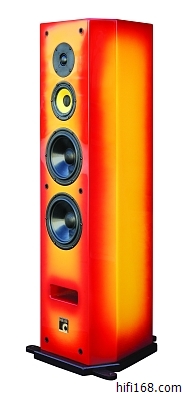

十一：SPI
  • Super flat frequency response +/- 1db from 40Hz to 30kH
  • Features two 7” long throw woofers
  • Comes complete with 24db per octave acoustical Linkwitz-Riley crossover slopes, plus six precision hand-wound inductors
  • One 4” glass fiber mid-range driver. This is the same exclusive driver used in our higher-end EPS and XPS series speakers
  • One 1” high efficiency, low distortion fabric dome tweeter
  • Cabinet made of ultra-dense Ranger Board™ with specially engineered internal chambers and baffles. Cabinet can be custom painted and/or veneered in exotic woods of the customer’s choice
SPECIFICATIONS
  • Dimensions (HxWxD): 41" x 13" x 14"
  • Frequency Range: 30 Hz to 30 kHz +/- 1.5 db
  • Efficiency: 89 dB
  • Crossover points: 300 Hz and 3500 Hz
  • Crossover roll of: 24dB/Octave Acoustical
  • Nominal Impedance: 5 Ohms
  • Drivers: 1" tweeter, 4" midrange, 2x7" woofers all SEAS

jpg(2016/2/3 16:45:04 上传)



jpg(2016/2/3 16:45:04 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
13#
t T
发表于 2016-02-03 16:50 |只看楼主

十二：EPS2
  • Precision made 14”W x 15”D x 54”H cabinet of ultra-dense MDF Ranger Board™. Signature Series has 1.625” solid maple hardwood fascia with choice of inlay
  • Matched pair of 8” mid-woofers, matched pair of 4” mid-range drivers and one 1” high efficiency, low distortion fabric tweeter
  • Comes complete with PBN’s proprietary 24db per octave acoustical Linkwitz-Riley crossover slopes, plus seven precision hand-wound inductors
  • Four audio-grade metallized polypropylene capacitors, along with film and foil bypass capacitors in the critical high-frequency network
SPECIFICATIONS
  • Dimensions (HxWxD): 54" x 14" x 15"Weight (lbs./ea.): 150
  • Finish: Custom order (Finishes Charts)

jpg(2016/2/3 16:50:28 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
14#
t T
发表于 2016-02-03 16:53 |只看楼主

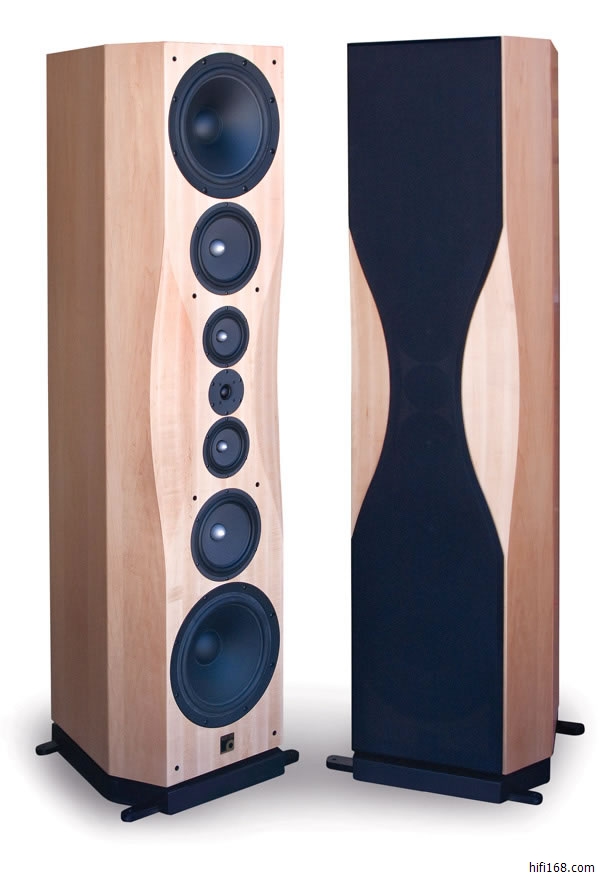

十三：Compact Reference Precision-made cabinet with a faceplate of 2.25 in. solid maple hardwood. Highly¬†engineered inner chambers designed to produce the most accurate measurable audio reproduction in the world
• Twin 10 in. Peerless woofers with a .75 in. throw matched to internal enclosures for producing accurate mid-bass
• Dual 5.25 in. neutrally-transparent, low-distortion mid-range drivers with Nextel-coated paper cones and a Hexadym Magnet System assuring low coloration in the mid-range
• A 1.125 in. high-end, high-efficiency, wide dispersion fabric-dome tweeter. Features a generously under-hung voice coil with a lead-out wire for low distortion and maximum breathing capacity
• Comes complete with PBN's proprietary 24db per octave acoustical Linkwitz-Riley crossover slopes. Plus, there are also seven precision hand-wound inductors¬†
• Two Jensen Coherent Audio Teflon film copper foil ultra-grade capacitors
SPECIFICATIONS• Dimensions 54"H x 16"W x 18"D

jpg(2016/2/3 16:52:47 上传)



jpg(2016/2/3 16:52:47 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
15#
t T
发表于 2016-02-03 16:55 |只看楼主

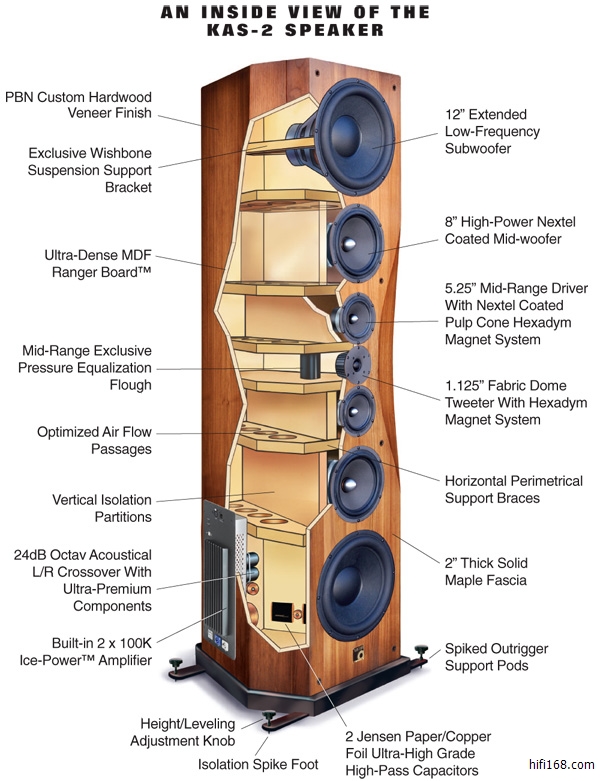

十四：KAS-2
  • Dimensions: (H x W x D):  70" x 19" x 21"
  • Weight: 330 lbs net / 150 kg
  • Frequency response: 18 Hz to 25 kHz +/- 3dB
  • Impedance: 4 Ohm (3 Ohm - 12 Ohms)
  • Woofers: 2 ea 12" Peerless XXLS
  • Mid-woofers: 2 ea 9" SEAS Excel Nextel
  • Mid Range: 2 ea 5" SEAS Excel Nextel
  • Tweeter: 1 ea 1.125" SEAS Excel Crescendo
  • Crossover frequencies: 55 Hz (active 12 dB per Octave) 300 Hz and 2500 Hz @ 24dB octave LR (acoustic)
  • Subwoofer Amplifier: 2 X 500W
  • Active Bass Extender with Volume control (active bass extension and 55 Hz Crossover frequency and active Subsonic filter at 10 Hz fixed)
  • Finish: Custom order (Finishes Charts)

jpg(2016/2/3 16:55:07 上传)



jpg(2016/2/3 16:55:07 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
16#
t T
发表于 2016-02-03 16:59 |只看楼主

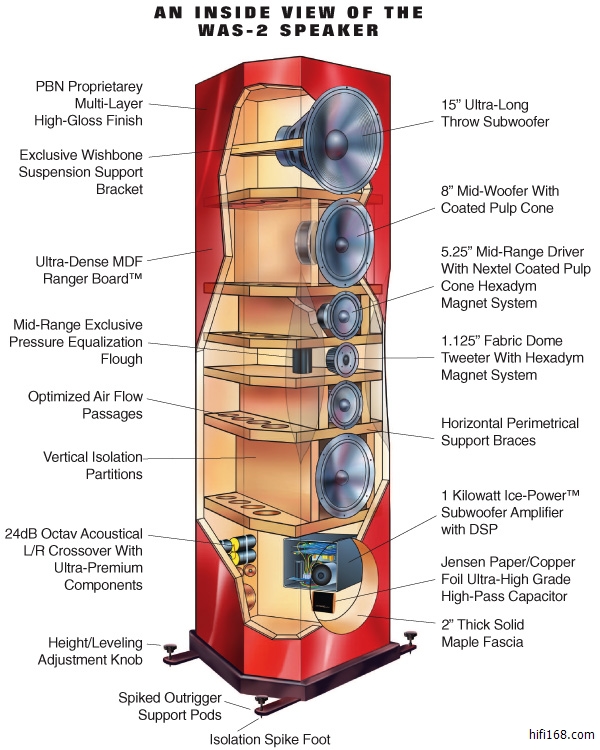

十五：WAS-2
TECHNICAL FEATURES
  • Two 15” ultra long-throw subwoofers suspended in our proprietary wishbone support bracket to produce unsurpassed performance
  • A matched pair of 8” mid-woofers with coated pulp cones assures smooth frequency response for ultra-accurate mid-bass punch. The extra-large magnet system along with a bumped back plate and copper clad aluminum voice coil assures unencumbered fidelity
  • Dual 5.25” mid-range drivers with Nextel coated pulp cones offer exceptional versatility through a Hexadym Magnet System. This dedicated mid-range system optimizes low distortion and eliminates unnecessary coloration
  • A 1.125” high efficiency, low-distortion fabric dome tweeter. The optimal shape of this tweeter coupled with a Hexadym Magnet System produces beautifully distinguishable audio in the higher reaches of the musical scale
  • Comes complete with PBN’s proprietary 24db per octave acoustical Linkwitz-Riley crossover slopes. Plus, there are nine precision hand-wound inductors
  • A Jensen Coherent Audio paper/copper foil ultra-grade capacitor
SPECIFICATIONS
  • Dimensions (H x W x D) : 75" x 23" x 25"
  • Weight : 400lbs
  • Subwoofer Amplifier: 1,000W DSP Based
  • Finish: Custom order (Finishes Charts)

jpg(2016/2/3 16:59:10 上传)



jpg(2016/2/3 16:59:10 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
17#
t T
发表于 2016-02-03 17:01 |只看楼主

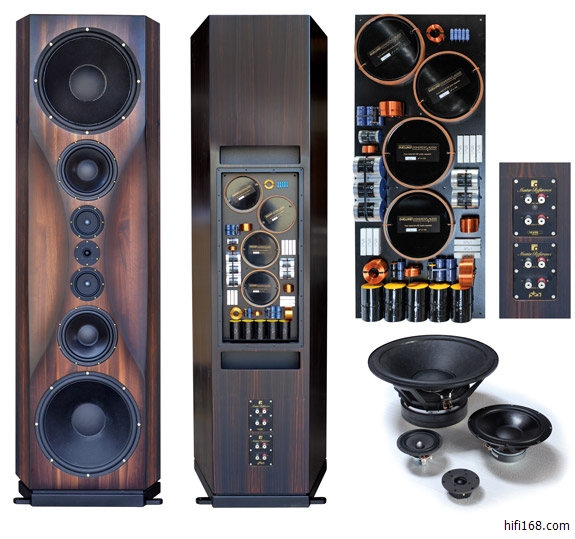

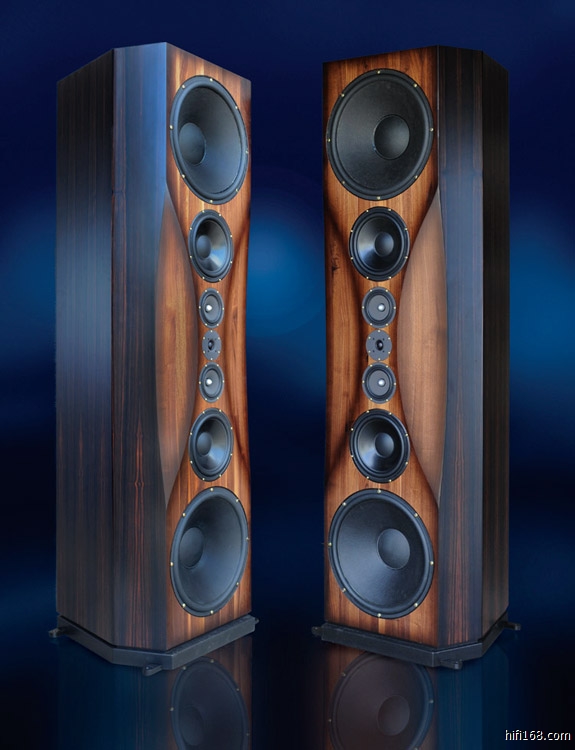

十六：Master Reference
  • Precision-made cabinet with a faceplate of 2.25” solid maple hardwood. Highly engineered inner chambers designed to produce the most accurate measurable audio reproduction yet achieved.
  • Two 18” auditorium-grade subwoofers capable of delivering 130dB down to 20Hz with one-plus inches of cone excursion. Each includes dual air channels with convective cooling systems. The result is an amazing purity, with clarity at all levels.
  • Twin 10” PeerlessTM woofers with a .75” throw matched to internal enclosures for producing accurate mid-bass
  • Dual 5.25” neutrally-transparent, low-distortion mid-range drivers with Nextel-coated paper cones and a Hexadym Magnet System assuring low coloration in the mid-range
  • A 1.125” high-end, high-efficiency, wide dispersion fabric-dome tweeter. Features a generously under-hung voice coil with a lead-out wire for low distortion and maximum breathing capacity
  • Comes complete with PBN’s proprietary 24db per octave acoustical Linkwitz-Riley crossover slopes. Plus, there are also seven precision hand-wound inductorsFour Duelund CAST paper in oil/copper foil ultra-grade capacitors
SPECIFICATIONS

jpg(2016/2/3 17:00:43 上传)



jpg(2016/2/3 17:00:43 上传)


www.fymhifi.com
TOP
北京飞韵美
头像

  • 论坛博士后
  • 1467
  • 6404
  • 2010-05-05
18#
t T
发表于 2016-02-03 17:02 |只看楼主

原帖由 clp0603 于 2016/2/3 16:43:00 发表
全英文？看不懂啊！
先把全部产品上传稍后翻译成中文。
www.fymhifi.com
TOP
老龚
头像

  • 论坛博士后
  • 3660
  • 4808
  • 2009-08-13
19#
t T
发表于 2016-02-03 17:21 |只看该用户

漂亮，看着都想摸一下。

另问：Hadley的落地箱的灵敏度是多少？几分频？200W的合并功放（紫禁城）能推出几成效果？
最后编辑老龚 最后编辑于 2016-02-03 17:22:23
器材无止境，理性发烧是正道！
TOP
kkhuang
头像

kkhuang

  • 论坛博士后
  • 19720110
  • 4702
  • 9763
  • 2003-10-07
20#
t T
发表于 2016-02-03 18:22 |只看该用户

英文都是技术参数，可以用翻译软件例如Google翻译就能了解个大概了。
用过,品尝过的才敢叫好!
